[ietf85-tech] Preliminary WAN Network Diagram

[Tauber, Tony]

Hi folks,

A picture is worth 1k words.

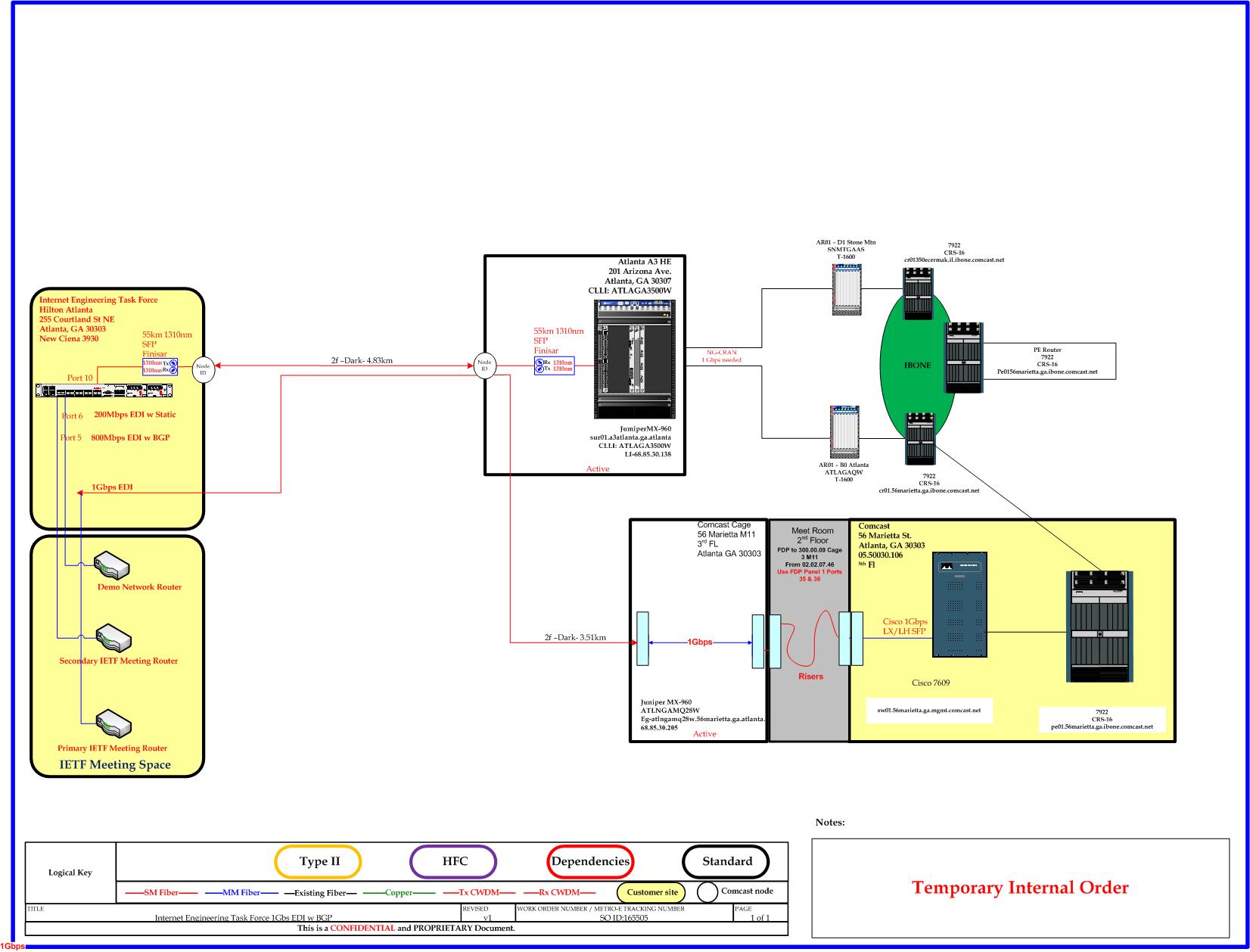

I embellished a bit on a diagram generated by the folks here at Comcast working on provisioning the connectivity to the Hilton.

It's a bit heavy on some kinds of details necessary for us and light on stuff inside the hotel but should hopefully help people get on the same page.

Basically, there will be two links for the Meeting network and a third for support of what I'm calling the Demo network.  That network is to support the "Bits-n-Bytes" technology demonstration.

Hope to talk to you all on today's tech call and we can discuss further.

Tony
-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://www.daedelus.com/pipermail/ietf85-tech/attachments/20120928/df321f72/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IETF85-WAN-20120928.jpg
Type: image/jpeg
Size: 180608 bytes
Desc: IETF85-WAN-20120928.jpg
Url : http://www.daedelus.com/pipermail/ietf85-tech/attachments/20120928/df321f72/attachment-0001.jpg
